NEOs StorageLoader
Backup and Archive Made Easy
More pricing below, click here
Please Note: All Prices are Inclusive of GST
Overview:
The NEOs StorageLoader brings easy, affordable high-capacity backup and archive capability to small office environments on a limited budget. Packing up to 50TB in a compact 1u form factor, the NEOs StorageLoader combines ease-of-use features and dependable operation to make efficient, cost-effective offline storage a reality for the most budget-challenged business. The simplicity of the NEOs StorageLoader also makes it an ideal solution for remote office locations looking to reliably protect important data and move it offsite. And if your current data protection strategy involves copying/moving data to a single, desktop tape drive or a tape drive contained in your server, NEOs StorageLoader provides the convenience and reliability of automated data backup, making NEOs StorageLoader the ideal 1st step into automated backup and archive.
With This Product You Can...
- Affordably backup or archive up to 240TB of data
- Effortlessly manage your backup and archive processes from anywhere in the world
About the NEO S-Series Family
Designed for IT offices with limited space, limited resources and limited budgets, the NEOs family delivers the ultimate in simple, affordable, reliable backup, archive and disaster recovery.
Because disk is an expensive place to store massive amounts of infrequently accessed data, best practices recommend archiving data off to tape. Moving the data to a NEO S-Series library reduces backup storage requirements, reduces costs, improves use of valuable floor space, improves energy efficiency, provides a higher level of data security and improves performance of networks and disk-based backup systems. NEO S-Series tape libraries provide the capacities, features and efficiencies needed for archived data.
Simple
Web-based remote management provides easy and convenient administration of the data archive process from anywhere in the world. Removable cartridge magazines enable easy access to data, reduce media handling costs and facilitate offline storage of your data for disaster recovery purposes. Standard barcode readers reduce media inventory times and simplify media management. Mail slots deliver easy, secure access to individual tape cartridges without interrupting library operations. NEOs tape drives are easily added, removed or replaced, providing the flexibility to adapt to changing data storage requirements.
Compact
Available in rack-friendly 1u, 2u and 4u form factors, NEOs packs up to 360TB of data into a single unit of rack height. The ability to store so much data in such a small space minimizes the use of valuable rackspace and reduces your overall cost of ownership.
Affordable
NEOs ease-of-use features mean you spend less time managing your backup and archive, reducing your administrative costs. Because NEOs is an extremely reliable platform, service and maintenance costs are reduced and the costs associated with downtime and lost productivity are eliminated. Effortless upgradeabilityto next-generation technologies protect your investment long-term while allowing you to increase your storage capacities and transfer rates in order to keep up with the ever-increasing demand to store more and more data.
Versatile
Providing up to 1.4PB of data storage capacity, NEOs tape library solutions are not only designed to meet your data backup and archive needs but to add storage as needed. Available with SAS or Fibre Channel connectivity, NEOs easily integrates into your existing network infrastructure and provides seamless compatibility with 3rd party backup software applications. Native partitioning capability in NEOs T24 and T48 libraries provides the ability to carve a single physical library into smaller logical libraries and securely use your NEOs library for a variety of different storage applications.

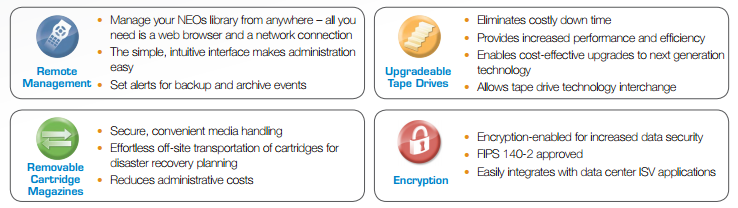

Features:
 |
EncryptionHighlights
|
|
 |
Remote ManagementNEO Series remote management provides intelligent, proactive administration and monitoring of the tape library, tape drives and media, ensuring a seamless backup and archive process. |
|
Highlights
|
Why You Need It...
|
|
 |
Removable Cartridge MagazinesNEO Series removable cartridge magazines provide effortless media handling for loading/unloading of cartridges while facilitating off-line storage for disaster recovery purposes. |
|
Highlights
|
Why You Need It...
|
|
Specifications:
| #of cartridge slots | 8 |
| #of tape drives | 1 |
| # of mail slots | 1 |
| Tape drives supported | LTO8, LT07, LTO6, LTO5 |
| Minimum Capacity | LTO-8: 96TB LT07: 48TB LTO6: 20TB LTO5: 12TB |
| Maximum Capacity | LTO-8: 240TB LT07: 120TB LTO6: 50TB LTO5: 24TB |
| Minimum data transfer rate | LTO-8: 1TB/hr LT07: 1TB/hr LTO6: 576GB/hr LTO5: 504GB/hr |
| Maximum data transfer rate | LTO-8: 2.7TB/hr LT07: 2.7TB/hr LTO6: 1.4TB/hr LTO5: 1TB/hr |
| Interfaces | 6Gb SAS, 8Gb FC |
| Connectors | Mini-SAS |
| Form Factor | 1U |
| Dimensions (inches - unpackaged) | 1.73"(h) x 18.98"(w) x 31.85"(d) (43.94mm x 482.1mm x 808.9mm) |
| Weight | 25.4 lbs. / 11.52kg |
| Power Requirements | 110 watts (max) |
| Input Requirements | 100 to 240 VAC, 50 to 60 Hz |
| Humidity (non-condensing; operating) | 10% to 80% |
| Temperature range (operating) | 10° to 35° C (50° to 95° F) |
| Reliability | 2,000,000 MCBF (robotic load/unload cycles) |
| Standard Warranty | NEO S-Series libraries include one-year OverlandCare Bronze Support Coverage, which includes 5x9 telephone support and advanced parts replacement. |
Product Comparison:
| NEOs StorageLoader | NEOs T24 | NEOs T48 | |
|---|---|---|---|
 |
 |
 |
|
| Configuration (total #) | cartridge slots: 8 magazines: 2 mailslots: 1 tape drives: 1 |
cartridge slots: 24 magazines: 1-2 mailslots: 1 tape drives: 1-2 |
cartridge slots: 48 magazines: 4 mailslots: 3 tape drives: 1-4 |
| Tape Drives Supported | LTO-8, LTO-7, LTO-6, LTO-5 | LTO-8, LTO-7, LTO-6, LTO-5 | LTO-8, LTO-7, LTO-6, LTO-5 |
| Capacity (max) | uncompressed - LTO-8: 96TB, LTO-7: 48TB, LTO-6: 20TB, LTO-5: 12TB compressed - LTO-8: 240TB, LTO-7: 120TB, LTO-6: 50TB, LTO-5: 24TB |
uncompressed - LTO-8: 288TB, LTO-7: 144TB, LTO-6: 60TB, LTO-5: 36TB compressed: LTO-8: 720TB, LTO-7: 360TB, LTO-6: 150TB, LTO-5: 72TB |
uncompressed - LTO-8: 576TB, LTO-7: 260TB, LTO-6: 120TB, LTO-5: 72TB compressed: LTO-8: 1.4PB, LTO-7: 720TB, LTO-6: 300TB, LTO-5: 144TB |
| Transfer Rate (max # drives) | uncompressed - LTO-8: Up to 1TB/hr, LTO-7: Up to 1TB/hr, LTO-6: Up to 576GB/hr, LTO-5: Up to 504GB/hr compressed - LTO-8: Up to 2.7TB/hr, LTO-7: Up to 2.7TB/hr, LTO-6: Up to 1.4TB/hr, LTO-5: Up to 1TB/hr |
uncompressed - LTO-8: Up to 2.2TB/hr, LTO-7: Up to 2.2TB/hr, LTO-6: Up to 1.2TB/hr, LTO-5: Up to 1TB/hr compressed - LTO-8: Up to 5.4TB/hr, LTO-7: Up to 5.4TB/hr, LTO-6: Up to 2.9TB/hr, LTO-5: Up to 2TB/hr |
uncompressed - LTO-8: Up to 4.2TB/hr, LTO-7: Up to 4.2TB/hr, LTO-6: Up to 2.3TB/hr, LTO-5: Up to 2TB/hr compressed - LTO-8: Up to 10.8TB/hr, LTO-7: Up to 10.8TB/hr, LTO-6: Up to 5.8TB/hr, LTO-5: Up to 4TB/hr |
| Reliability | MSBF (mean swaps between failures): 2,000,000 | MSBF (mean swaps between failures): 2,000,000 MTBF (mean time between failures): 100,000 hours |
MSBF (mean swaps between failures): 2,000,000 MTBF (mean time between failures): 100,000 hours |
| Host Interface | 6Gb SAS, 8Gb FC | 6Gb SAS, 8Gb FC | 6Gb SAS, 8Gb FC |
| Connectors | Mini-SAS, LC Optical FC | Mini-SAS, LC Optical FC | Mini-SAS, LC Optical FC |
| User Interface | LCD front panel; web-based remote management | LCD front panel; web-based remote management | LCD front panel; web-based remote management |
| Physical Specifications | Dimensions: 1.73"(h) x 18.98"(w) x 31.85"(d); 1u
43.94mm x 482.1mm x 808.7mm Weight: 25.4 lbs (without rackmount) 11.52 Kg |
Dimensions: 3.44"(h) x 17.6"(w) x 29.13"(d); 2u
87.4mm x 447.0mm x 739.9mm Weight: 33 lbs (without rackmount) 14.97 Kg |
Dimensions: 6.9"(h) x 17.6"(w) x 29.13"(d); 4u
175.3mm x 447.0mm x 739.9mm 47 lbs (without rackmount) 21.31 Kg |
| Power | 100 - 240 VAC; 50 - 60 Hz; 110 watts (max) | 100 - 240 VAC; 50 - 60 Hz; 168 watts (max) | 100 - 240 VAC; 50 - 60 Hz; 312 watts (max) |
| Environmental Requirements | Humidity: 10-80% (operating, non-condensing) Temperature: 10 °C to 35 °C (operating) |
Humidity: 10-80% (operating, non-condensing) Temperature: 10 °C to 45 °C (operating) |
Humidity: 10-80% (operating, non-condensing) Temperature:10 °C to 45 °C (operating) |
| Standard Warranty | NEO S-Series products are covered by a one-year Advanced Parts Replacement and 9x5 telephone support. NEOs libraries are eligible for enhanced maintenance options to augment the standard limited warranty. | ||
| Upgrade Options | 3 years advanced parts replacement 1 year/ 3 years onsite |
||
| Included in Std. Configuration | Library with (1) tape drive, US & European power cord, Quick Start Guide, rackmount hardware | ||
| Accessories | LTO-8 / LTO-7 / LTO-6 / LTO-5 upgrade tape drives, LTO-8 / LTO-7/ LTO-6 / LTO-5 media, LTO cleaning cartridges, SAS connectivity kit, LTO-8 / LTO-7 / LTO-6 / LTO-5 barcode labels, 8-slot magazines | LTO-8 / LTO-7 / LTO-6/ LTO-5 add-on tape drives, LTO-8 / LTO-7 / LTO-6/ LTO-5 media, LTO cleaning cartridges, SAS connectivity kit, LTO-8 / LTO-7 / LTO-6/ LTO-5 barcode labels, 12-slot magazines | LTO-8 / LTO-7 / LTO-6 / LTO-5 add-on tape drives, LTO-8 / LTO-7 / LTO-6 / LTO-5 media, LTO cleaning cartridges, SAS connectivity kit, LTO-8 / LTO-7 / LTO-6/ LTO-5 barcode labels, 12-slot magazines, redundant power option |
Documentation:
Download the NEOs Series Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Snap Servers require that replacement drives be of the same capacity as those originally installed in the system. Please verify the capacity of your original Snap Server drives before purchasing any replacement drive.
- Overland CARE support Upgrades (Part Number EWCARExU-xxx) are valid only on new products within the first 90 days following purchase and start at the date of installation.
- Snap Server systems are eligible for enhanced Overland CARE maintenance options to augment the standard limited warranty.
- Specially priced 5 year Overland CARE support upgrades are available to protect your investment for the life of the product.
- All Snap Server systems products, now also include Software Maintenance for the full term of the factory warranty.
- Support coverage of all Snap Expansion units must be purchased separately and run concurrently with the primary Unit.
- You may augment your support with our Overland ACCESS support option for 24x7 access to our expert technical support team or with our Secure Drive program which allows you to keep your failed disk drives in secure data environments.
