LTO-7 HH
Reliable, High-capacity Tape Drives
LTO-7 - 6 TB (Native)/15 TB (Compressed) - SASInternal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BARE
Our Price: Request a Quote
LTO-7 - 6 TB (Native)/15 TB (Compressed) - Fibre ChannelInternal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BARE
Our Price: Request a Quote
LTO-7 - 6 TB (Native)/15 TB (Compressed) - SAS1/2H Height - External - Linear Serpentine - TAA Compliant DRIVE W/MEDIA TAA
Our Price: Request a Quote
More pricing below, click here
Please Note: All Prices are Inclusive of GST

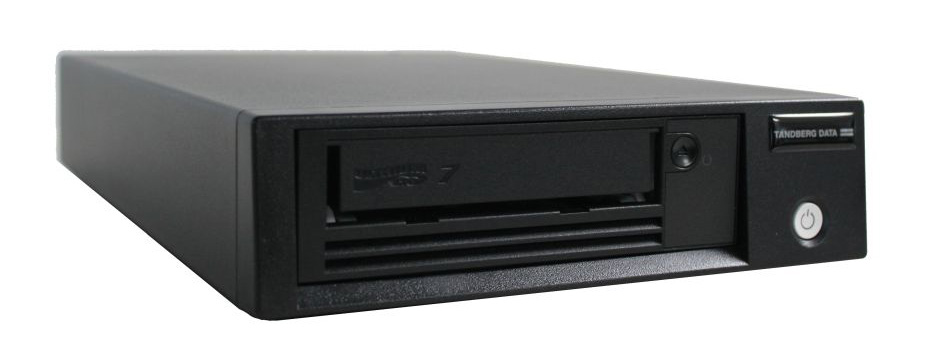

LTO-7 HH
Reliable, High-capacity Tape Drive
LTO-7 is the optimal solution for capacity-hungry, performance-driven applications like in the media and entertainment industry, in imaging applications, in medical environments or for the collection of scientific data.
LTO-7 is best for large Backup Sets. It provides smaller backup window and faster restores.
The Tandberg Data LTO-7 drive is able to store up to 15TB* of data on a single cartridge and provides performance of up to 2.7TB per hour. The LTO-7 tape drive is backward write-compatible through one generation and read-compatible two generations.
- Capacity: 6TB / 15TB (native/compressed*)
- Performance up to 2.7 TB/Hr (compressed*)
- Low cost of ownership and low media cost
- Enterprise features and performance in a small form factor
- Future proof with 10-generation roadmap
- Data speed matching reduces mechanical wear and extends tape life
- Proven reliability MTBF of 250,000 hrs at 100% duty cycle
- LTFS, WORM and AES 256-bit encryption
- 30 year archival life
- 3 years Advanced Replacement Service warranty
The LTO-7 tape drive supports LTFS, WORM and AES 256-bit hardware encryption providing maximum protection for data stored off-site or in transit. The Tandberg Data LTO-7 tape drive is offered with a SAS interface and a choice of internal and external configurations and is supplied with a 3 year Advanced Replacement Service warranty.
LTO tape technology makes it easy for users to standardize on a tape technology that meets today's data capacity requirements and ensures futures growth potential. LTO's ten-generation roadmap, with five generations available today, makes it a clear choice for small to medium-sized businesses.
Media Compatibility
The Tandberg Data LTO-HH tape drives are compatible with industry standard, multi-sourced LTO media.
* Assumes compression ratio of 2:1 on LTO-4/5 and 2.5:1 on LTO-6
Key Benefits:
- Backup as much as 30TB of data on a single cartridge
- Reduce your backup window and use of server and network resources with high-performance data transfer rates
- Maximize your investment and ensure that your data is safe with proactive drive and media management
- Secure confidential information and address compliance issues with hardware data encryption and WORM support
- Ensure effortless connectivity with widespread server and backup software support
- Provide backward compatibility to legacy tape cartridges in automation environments
Specifications:
Capacity (native/compressed) | 6TB / 15TB* |
Transfer Rate (native/compressed) | 300 MB/s / 750 MB/s* |
Dynamic Speed Matching | 101 - 306MB/s |
Memory Buffer Size | 1GB |
Data Access Speed | 50 sec. |
Data Compression | 16KB (2.5:1) |
Encryption | AES 256-bit |
LTFS | Yes |
Recording format | LTO Ultrium 7, LTO Ultrium 6, LTO Ultrium 5 (read only) |
Interface | 6GB SAS/SFF 8088 |
Reliability | |
MTBF Hours (100% duty cycle) | 250,000 hours @ 100% duty cycle |
Head Life | 100,000 tape running hours |
Hard Error Rate | 1 x 10(-19) bits |
Environmental Specifications | |
Temperature (Operating) | 50° - 100°F (10°C - 38°C) |
Temperature (Non-operating) | -40° - 151°F (-5°C - 65°C) |
Relative Humidity (Operating) | 20 - 80% (non-condensing) |
Relative Humidity (Non-operating) | 10 - 95% (non-condensing) |
Power Requirements | |
Idle | 4 W |
Typical | 29 W |
Maximum | 42 W |
Power Supply/ Required (int) | 5V DC, 3.7A, 12 V, 0.9A |
Certification | CSA Certification to C22.2, No. 60950 (cCSAus), TUV EN60950 (IEC 60950), CE Declaration of Conformity, FCC 47 CFR Parts 15, NOM, VCCI. C-TICK, RRL, BSMI, GOSH CB Certificate and Report (IEC 60950) |
Warranty | 3-years Advance Replacement Service Warranty** |
Dimensions | |
Physical Internal / External (HxWxD) |
1.7 in. x 5.8 in. x 8.3 in.(43.2mm x 147.3mm x 210.8mm) / 2.3 in. x 8.4 in. x 13.1 in. (58.4mm x 213.4mm x 332.7mm) |
Weight | |
Weight Out of box, Internal | 3.7 lbs. (1.7 kg) |
Weight Out of box, External | 9.4 lbs. (4.3 kg) |
* Assumes compression ratio 2:1 on LTO-2/3/4/5 & 2.5:1 on LTO-6/7
** Availability dependent on location
Tape Drive Specifications
LTO-8 | LTO-7 | LTO-6 | LTO-5 | |
---|---|---|---|---|
Capacity (native) | 12TB | 6TB | 2.5TB | 1.5TB |
Capacity (Compressed) | 30TB | 15TB | 6.25TB | 3.0TB |
Transfer Rate (native) | 300MB/s (1TB/hr.) | 300MB/s (1TB/hr.) | 160MB/s (576GB/hr.) | 140MB/s (504GB/hr.) |
Transfer Rate (compressed) | 750MB/s (2.7TB/hr.) | 750MB/s (2.7TB/hr.) | 400MB/s (1.4TB/hr.) | 280MB/s (1TB/hr.) |
Ratio | 2.5:1 | 2.5:1 | 2.5:1 | 2:1 |
Interface | 6Gb SAS/SFF 8088 | 6Gb SAS/SFF 8088 | 6Gb SAS/SFF 8088 | 6Gb SAS/SFF 8088 |
Configurations | Internal; external/desktop | Internal; external/desktop | Internal; external/desktop | Internal; external/desktop |
Internal Dimensions (HxWXD) | 1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
1.7 in. x 5.8 in. x 8.3 in. 43.2mm x 147.3mm x 210.8mm |
External Dimensions (HxWxD) | 2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
2.3 in. x 8.4 in. x 13.1 in. 58.4mm x 213.4mm x 332.7mm |
Internal Weight | 3.7 lbs. / 1.7 kg | 3.7 lbs. / 1.7 kg | 3.7 lbs. / 1.7 kg | 3.7 lbs. / 1.7 kg |
External Weight | 9.4 lbs. / 4.3 kg | 9.4 lbs. / 4.3 kg | 9.4 lbs. / 4.3 kg | 9.4 lbs. / 4.3 kg |
Read/Write Compatibility | Write: LTO-8, LTO-7 Read: LTO-8, LTO-7 |
Write: LTO-7, LTO-6 Read: LTO-7, LTO-6, LTO-5 |
Write: LTO-6, LTO-5 Read: LTO-6, LTO-5, LTO-4 |
Write: LTO-5, LTO-4 Read: LTO-5, LTO-4, LTO-3 |
MTBF (Mean Time Between Failure) | 250,000 hours @100% duty cycle | 250,000 hours @100% duty cycle | 250,000 hours @100% duty cycle | 250,000 hours @100% duty cycle |
Buffer Size | 1024MB | 1024MB | 512MB | 256MB |
Data Rate Matching (native) | 112-365MB/s | 101-306MB/s | 40-160MB/s | 40-140MB/s |
Power Consumption (maximum) | 30 watts | 24 watts | 24 watts | 24 watts |
Temperature (operating) | 50° - 105°F 10° - 40°C |
50° - 105°F 10° - 40°C |
50° - 105°F 10° - 40°C |
50° - 105°F 10° - 40°C |
Humidity (operating) | 20-80% (non-condensing) | 20-80% (non-condensing) | 20-80% (non-condensing) | 20-80% (non-condensing) |
Standard Warranty | 3 Years. bronze advanced exchange | 3 Years. bronze advanced exchange | 3 Years. bronze advanced exchange | 3 Years. bronze advanced exchange |
Documentation:
Download the LTO Tape Drive Datasheet (PDF).
